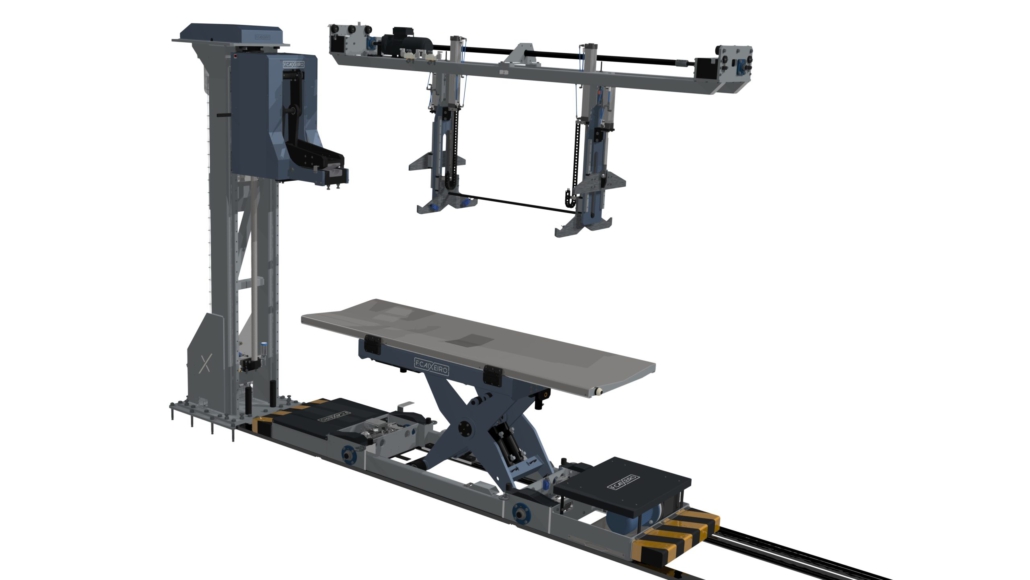

Automatic Roll and Shaft Handling
- Automatic roll and mandrel handling for back-to-back or face-to-face winders: Fully automatic unloading of the finished roll and reinsertion of the expansion mandrel.
- For effective widths of 1600–5500 mm, roll diameters up to 1200 mm, and roll weights up to 1500 kg
- Flexible shaft diameters: Supports 76 mm and 152 mm expansion shafts up to 300 kg.
- 3-minute work cycle: A fast, repeatable process for maximum productivity.
- Reducing the workload on operating personnel: Automated processes reduce the need for manual intervention and improve workplace safety.
- Seamless integration: Can be installed right next to the winder and is fully synchronized with the extrusion line.
- Increased efficiency: Shorter downtime, fewer handling errors, optimized production processes.
